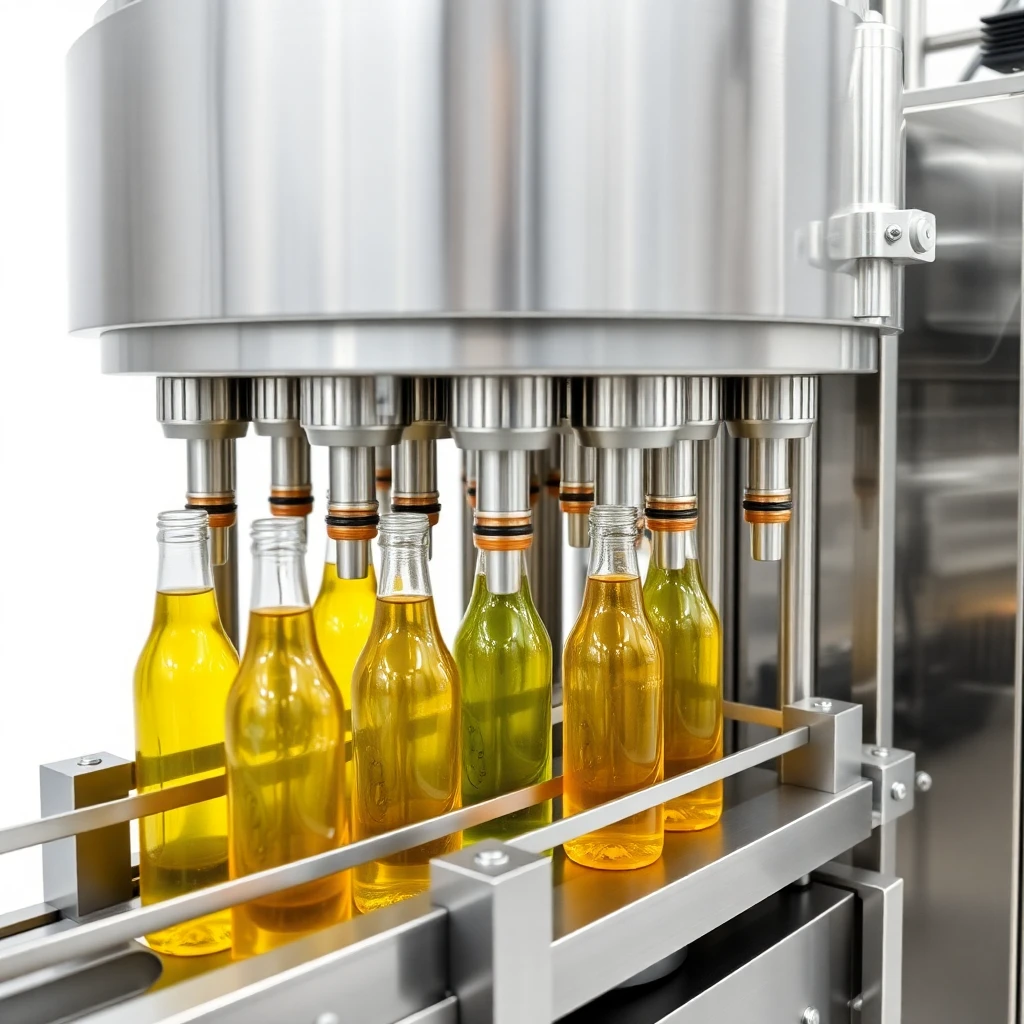

Bottle Filling Machine

Bottle filling machines handle round, oval, flat and custom-shaped bottles in PET, HDPE, PP, glass and aluminium. Capacity ranges from 30 ml (small personal care) to 5,000 ml (large household or industrial). Round bottles are simplest — no orientation needed. Non-round bottles require a timing screw or orientation system at the in-feed. Glass bottles need soft-contact guides and reduced speed to prevent breakage.

Inline bottle fillers move bottles in a straight line through 2–16 fill heads mounted over the conveyor. They are flexible (easy bottle changeover), lower cost and ideal for 30–6,000 bottles/hr. Rotary bottle fillers use a rotating carousel with 6–24+ heads for continuous motion filling at 3,000–60,000 bottles/hr. Choose inline for multi-product flexibility; choose rotary for single-product high-volume lines.

Bottle filling accuracy depends on the filling principle, viscosity, bottle stability, temperature control and downstream checking method. Servo piston, flow meter and net-weight filling are reviewed against the product and container data before the final tolerance is confirmed. For declared-volume products, use net-weight filling with a downstream checkweigher.

Yes, with different fill principles. Thin liquids (<500 cP): gravity or flow meter filler. Medium viscosity (500–10,000 cP, sauces, shampoo): piston filler. Thick products (>10,000 cP, ketchup, mayonnaise): piston filler with large-bore nozzle and heated hopper. A single machine can be configured for a viscosity range, or interchangeable fill heads supplied for multiple product types.

Semi-automatic 2-head bottle filler (30 ml–1,000 ml): scope-based quotation. Automatic inline 4-head bottle filler with conveyor: scope-based quotation. Automatic 8-head inline filler with servo drives: scope-based quotation. Complete 4-head filling line (filler + capper + labeller): scope-based quotation. Rotary bottle filler 12–20 heads (200–500 BPM): scope-based quotation. Contact us with your bottle type, fill volume and target speed for an accurate quote.

Same bottle, different fill volume: 5–10 min (update recipe on HMI). Same diameter, different height: 10–20 min (adjust nozzle height and guide rail). Different diameter: 20–45 min (change guide rails, bottle plates, nozzle spacing). Complete format change: 30–60 min (may include CIP flush). Servo-driven machines with motorised adjustment reduce changeover to 15–30 min by storing all positions in the recipe.
